Integration of electronics into textiles
About the project
About the Technology
When developing e-textile systems, the electrical and mechanical connection of mostly hard components with soft, flexible materials is a major challenge. Standard technologies such as soldering are not suitable for temperature-sensitive textiles, and embroidered contacts offer insufficient protection against short circuits and environmental influences. Fraunhofer IZM specializes in the development of textile-compatible connection solutions and, within the scope of this project, offers access to the latest and more advanced technologies such as non-conductive adhesive bonding, ultrasonic plastic welding, low-temperature soldering or mechanical connectors. This enables the development of samples batches, small series and is also suitable for production.
Usual Areas of Application
Smart Textiles.
Materials Used in Re-FREAM
Silver, Copper.
Technology is used by these Re-FREAM Partners
Fraunhofer IZM (Berlin, Germany)
Hubs
Hub Berlin: From analog to connected
Assigned Projects within Re-FREAM
- Lovewear (Witsense)
- Constructing Connectivity (Jessica Smarsch)
- Alma (Giulia Tomasello)
- Second Skins (Malou Beemer)
- Embroidered Touch / Life Space (Anke Loh)
- Ignotum (Jan Wertel)

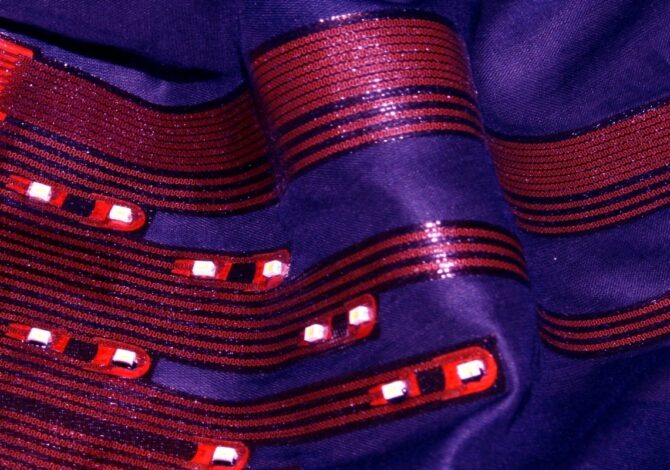

![Integration of electronics into textiles](https://re-fream.eu/wp-content/uploads/2019/02/Fraunhofer-IZM-Low-temperature-soldered-LEDs-on-stretchable-circuit-board-that-is-laminated-onto-textile-670x470.jpg)
![IMG_5786](https://re-fream.eu/wp-content/uploads/2019/02/IMG_5786-e1551307420566-670x465.jpg)
![WelConTex 4-wire Measurement(C)FraunhoferIZM](https://re-fream.eu/wp-content/uploads/2019/02/WelConTex-4-wire-MeasurementCFraunhoferIZM-670x447.jpg)
